• Medium-free Holographic Elevator Panel Terminal  (Inside Car)
    Medium-free Holographic Elevator Panel Terminal (Inside Car)

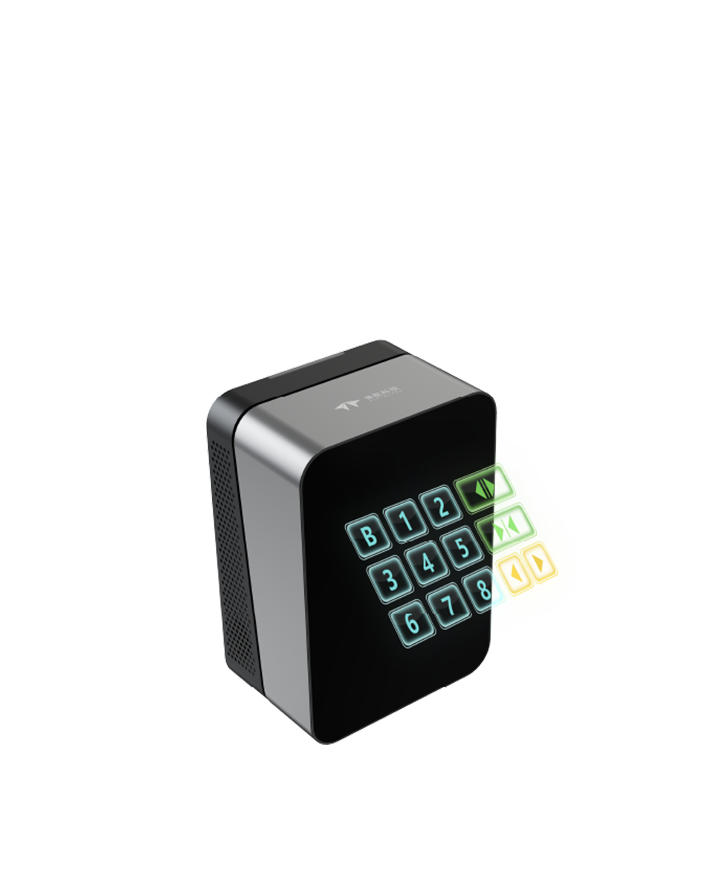

    Medium-free holographic elevator panel terminal, equipped with XHOLO's self-developed medium-free holographic technology, features high integration and offers two flexible connection options: direct button connection and 4G communication, to accommodate different building elevator structures and network environment needs. It includes a range of intelligent function modules, with remote elevator diagnostic functions that can monitor the elevator's operating status in real-time, and OTA (over-the-air) upgrade capabilities for remote updates and optimizations of the terminal system software. The custom elevator scheduling function can flexibly allocate elevator resources based on building traffic flow and passenger needs, enhancing the safety and intelligent management level of elevator operations. This terminal innovatively provides holographic advertising display and floor navigation information presentation functions, with strong interconnectivity capabilities, seamlessly connecting with access control, turnstile, and other display module terminals, to build a complete smart building ecosystem.

Product Highlights

We can create contactless elevator buttons (inside the car + outside the hall) for existing elevators, or we can create contactless elevator buttons through embedded front-end cooperation. It is suitable for use in various enterprises, institutions and buildings such as hospitals, schools, residences, offices, businesses, hotels, banks, governments, etc. The system has the characteristics of high independence, easy installation, maintenance, transformation and low cost. It is safe, sensitive and efficient, and you can choose from a variety of access methods such as direct button connection and SUB-GHZ protocol.
  • Aerial imaging
  • Sensitive touch
  • Zero risk of infection
  • Energy saving and consumption reduction

Technical Parameter

Image source: 5-inch LCD screen 800*480

Air display: viewing angle ±30°

Air interaction: response delay 50ms, touch accuracy 2mm

Sound: Mono audio output

Interface: USB Type-C, 485 communication line, switch button

Key signal duration: ≥100ms

Key signal definition: KEY+, KEY-

Working environment: -10℃-60℃

Size: 209*147*95mm

Power supply: 12V

Operating system: RTOS

Customer Cases

  • Rule Lake, Nanchang, Jiangxi
    Rule Lake, Nanchang, Jiangxi

    Case description:

    Relying on the characteristics of medium-free holographic technology, such as imaging and operability in the air, passengers can experience the convenience of viewing aerial images with naked eyes without wearing any equipment, and can select floors without touching the screen.The application of contactless elevator button terminals has strengthened the health and safety defense line of the place.
