• Medium-free holographic elevator button (outside hall DV02)

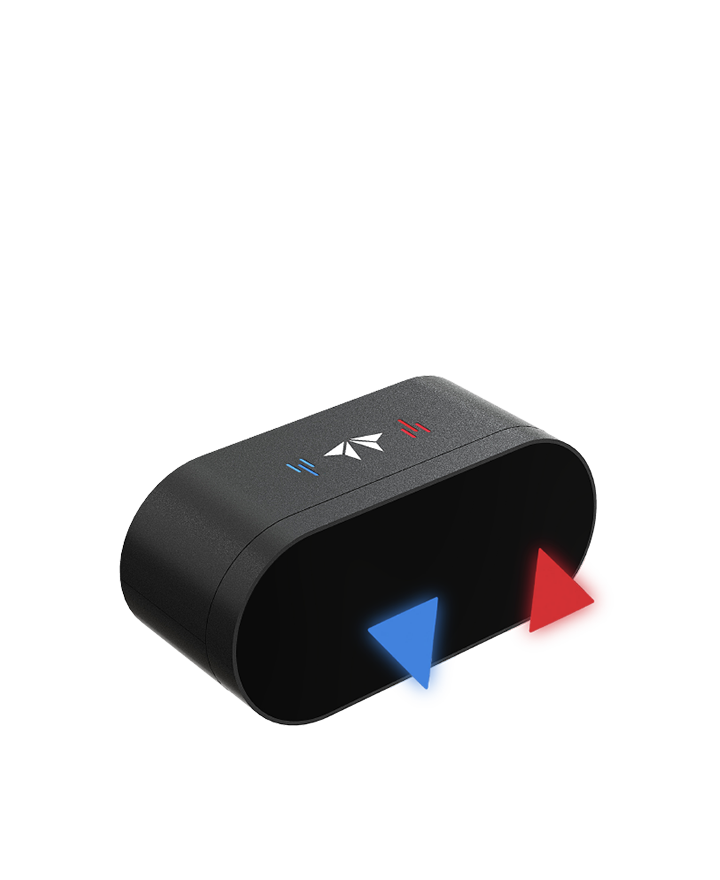

    Medium-free holographic elevator button (outside hall DV02)
    The interaction is sensitive, with an average speed of milliseconds, realizing truly contactless elevator travel. It can be widely used in public spaces such as government agencies, hospitals, schools, stations, shopping malls, etc.

Product Highlights

We can create contactless elevator buttons (inside the car + outside the hall) for existing elevators, or we can create contactless elevator buttons through embedded front-end cooperation. It is suitable for use in various enterprises, institutions and buildings such as hospitals, schools, residences, offices, businesses, hotels, banks, governments, etc. The system has the characteristics of high independence, easy installation, maintenance, transformation and low cost. It is safe, sensitive and efficient, and you can choose from a variety of access methods such as direct button connection and SUB-GHZ protocol.
  • Aerial imaging
  • Sensitive touch
  • Zero risk of infection
  • Energy saving and consumption reduction

Technical Parameter

Image source: 3D RGB LED

Air display: viewing angle ±30°

Air interaction: response delay 50ms, touch accuracy 2mm

Sound: Buzzer

Interface: USB, power switch button, 2-wire button interface

Key signal duration: ≥100ms

Key signal definition: WCC, LAMP, KEY, GND. KEY+.KEY-

Working environment: -10℃-60℃

Size: 169*74*73mm

Power supply: DC 24V, 1.2W, the power supply line is subject to the actual delivery

Customer Cases

  • DoBe Digital Life Center
    DoBe Digital Life Center

    Case description:

    The contactless elevator button terminal brings a highly technological interactive experience to community residents. Users only need to click the button suspended in the air to complete multi-functional operations such as floor selection.The application of this product in digital life venues can effectively solve the hygiene problems caused by connecting physical buttons.
